◆食品特性 Product features
此機型為兩用型模具及滾筒噴砂機,產品類小工件產品可以批量生產用滾筒來生產提高了生產產量,重型工件可以使用轉臺降低工人的勞動強度,大大的滿足了客戶的需求。
The machine is available mould and roller sandblasting machine, Class products can batch production small workpiece with roller to improve manufacturing output, Heavy workpiece can use turntable to reduce the labor intensity, Fully meet the customer's requirements.
◆主要的枝術數據 Main technical parameters
機應用 Model |

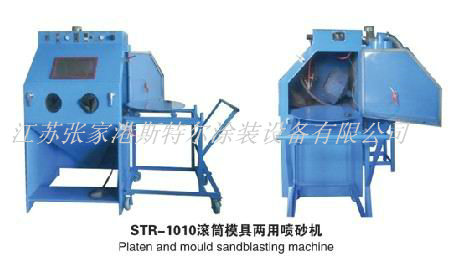

STR-1010滾筒模具兩用噴砂機 |
崗位艙大小 Internal size(mm) |
1000×1000×790 |
裸機長寬高 Complete machine size(mm) |
1000×1540×1830 |
供電 Power |
220V 50Hz |
機氣照明工程燈 Machine floodlight |
220V 13W低碳燈 |
分開器三相電機 Separator motor |
220V 50Hz 550W |
分割器新風量 Separator air volume |
8.5m3/min |
減小熱空氣源 Compressed air source |
2-8bar(kg/cm2) |
轉臺半徑 Turntable diameter(mm) |
500 |
轉臺承重力度 Turntable bearing |
150kg |
滾桶承受壓力 Roller bearing |
10-30Kg |
機毛重 Machine net weight |
380 kg |
