本噴砂機適用于10-490mm直徑為的各大鋼件的內外線從單單從從表面層簡單手工操作使用噴砂施工,解決外從單單從從表面層的的殘垢、從單單從從表面層噴砂除銹、從單單從從表面層武器鍛造、的提升低質度、消除從單單從從表面層彎曲應力等。(假如:電飯煲、杯具、不粘鍋、智能手機殼子、手機殼子、風扇葉片、鋸條特點)可按潛在客戶條件制作廠單工裝夾具或雙工裝夾具。
The sandblasting machines apply to 10-490 mm diameter of of all kinds of the internal and external surfaces of the manual operation sandblast homework, remove the dirt, surface derusting appearance, surface strengthening and improving roughness, removing surface stress, etc. (for example: electric meal bao, cup with, titanium, cell phone casing, computer shell, impeller, saw blades, etc) make single or double position according to customers' special requirements.
◆重要技術應用參數設置 Main technical parameters
絲機規格型號 Model |
STR-A1500型第十二槍圓輪轉回式 |
STR-A1600型八槍圓輪轉回式 |
STR-A1600型十四槍園盤換向式 |
服務器尺寸 Complete machine size(mm) |
1500×2160×3000 |
1600×1800×2500 |
2200×2400×3000 |
上班艙圖片尺寸 Working class size(mm) |
Φ1400 |
Φ1500 |
Φ2000 |
凈化箱尺寸圖 Dedust box sizes(mm) |
1000×1200×2500 |
1000×1200×2500 |
1400×1400×2500 |

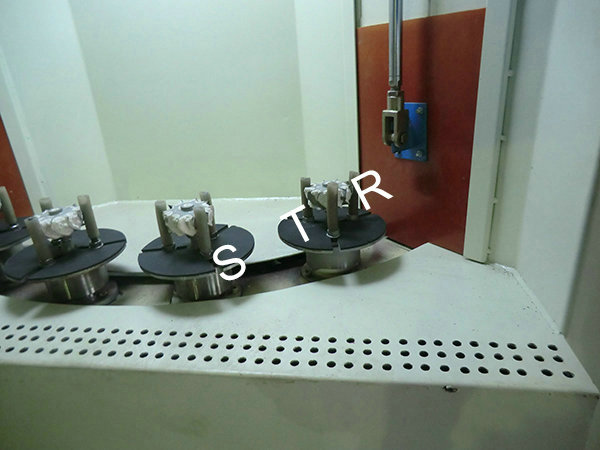

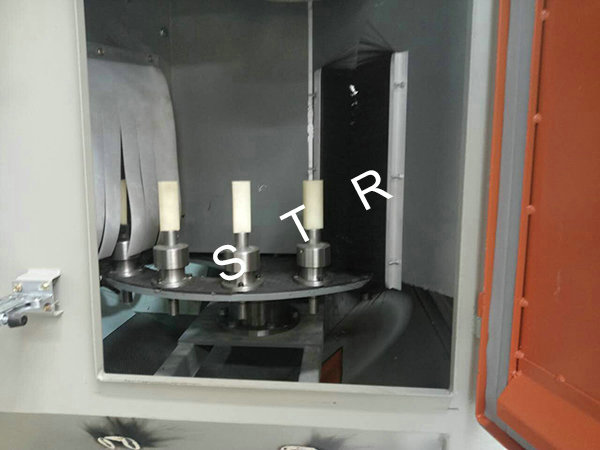

小轉盤數 The small turntable for |
16個 |
8個 |
8個 |

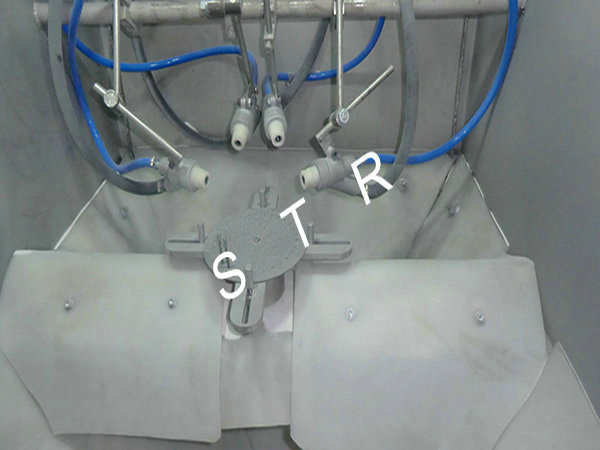

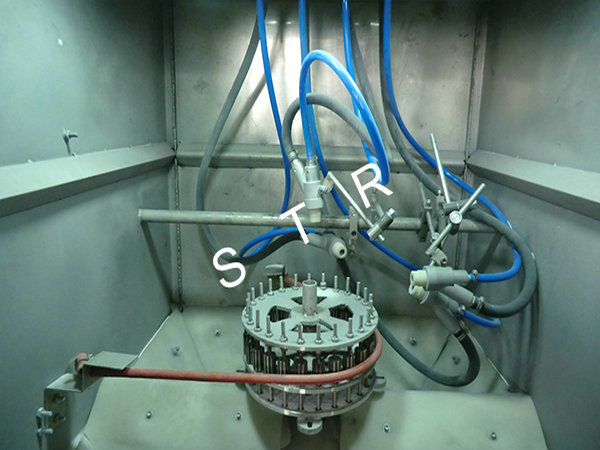

噴槍數 Gun number |
12把 |
8把 |
14把 |
24v電源 Power |
380V單相電 |
380V相電壓電 |
380V三相電源電 |
照明 Floodlight |
2盞防暴燈 |
2盞防爆設備燈 |
2盞防火燈 |
刷卡機體積 Machine weight |
800kg |
750kg |
800kg |
