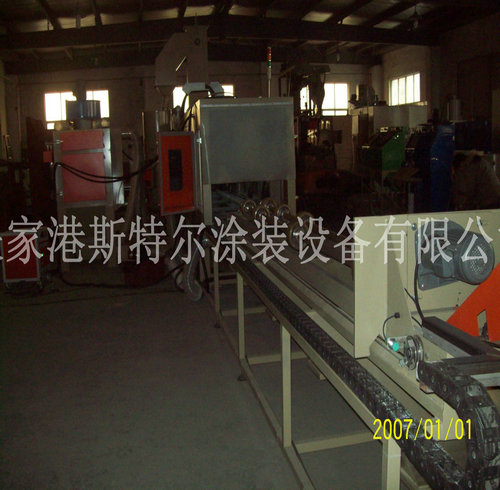

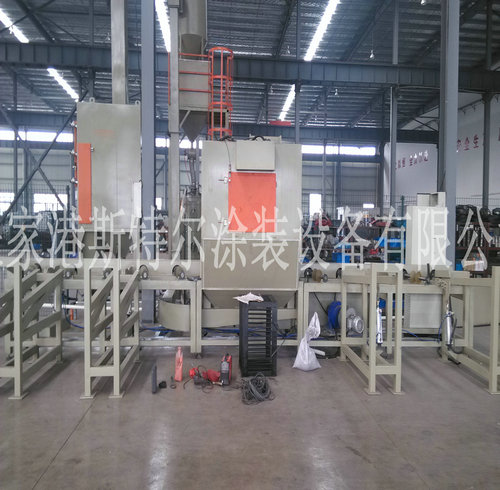

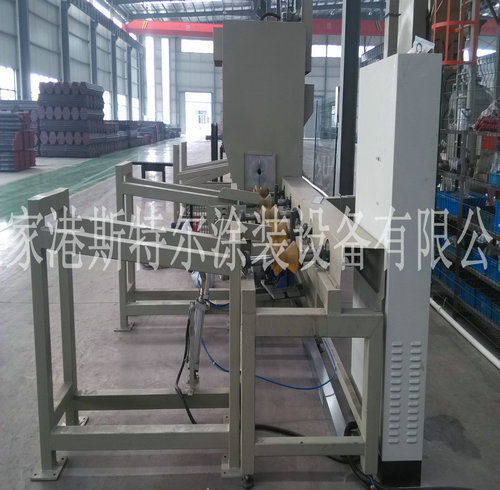

管道外壁自動噴砂機
◆支持范圍內 Applicable scope
管類工件產品,如:塑料管、園鋼、撐桿、擠出機螺桿、較大型柱體、圓罐類、柱體型鋼件;選擇雙槍(可按規范要求多槍)及漩風式清灰器和光電科技紅外感應用途,升高了制作使用率及遠遠的減輕了返修率。 (此門焊機需相應)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆其主要新技術性能參數 Main technical parameters
機技術參數 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
做工作艙長寬高 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
機器大小 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
收縮空氣質量源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
主機電源 Power |
220v 50Hz |
220v 50Hz |
變頻器變頻電動機變速器 Governor |
250W×2 |
250W×2 |
隔離器交流接觸器 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
分離器風速 Air separator |
35m3/min |
35m3/min |
系統容量 Machine weight |
900kg |
900kg |
